COR850

All Cormorant yachts are built with solid, high-quality construction to ensure maximum safety for all onboard, especially children. The high bulwarks, nearly 1 meter (3.2 feet) tall, provide excellent protection, and lifebuoys are strategically placed for quick access on the main deck and flybridge, with additional space for a life raft.

Advanced Bilge Water System

The COR850 is equipped with top-tier bilge water pumps across three sections. Each section includes a standard 32L/min (8.48 GPM) pump and a high-water-level pump with a 200L/min (52.8 GPM) capacity. Additionally, a hand pump allows for manual water removal at 100L/min (26.4 GPM). For Long Range Cruisers, a mechanical pump driven by the main engine offers extra protection. The hull’s sandwich structure ensures that even in the event of a collision, water is effectively pumped out.

EMPIRBUS Safety and Diagnostics

The COR850 features the Empirbus diagnostic and alarm system, providing real-time warnings of any potential dangers. Backup batteries near the wheelhouse ensure communication and navigation systems stay operational for hours in emergencies, including navigation lighting.

Comprehensive Communication and Navigation

Standard safety features include:

• Two independent VHF radios and GPS receivers
• Radar, foghorn, and AIS Class B transponder
• Option for Iridium satellite communicator for rapid emergency communication
• For Long Range Cruisers (LRC), an AIS Class A transponder is available

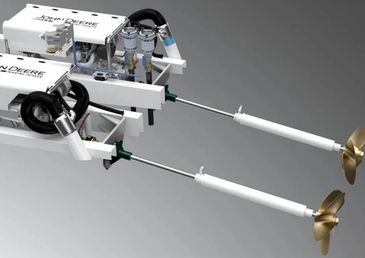

Reliable Twin Drive System

The twin drive system offers superior performance compared to a single engine, with an additional get-home engine for added safety. LRC configurations include redundant steering, fuel, electric, and water systems for total reliability on long voyages.

Fire Safety

The COR850 is equipped with two Sea-Fire automatic fire extinguishing systems, one in the engine room and the other in the bow engine room, providing thorough fire protection.

Thanks to the expertise of Structeam UK, our yachts are designed with precision and efficiency. The structure incorporates an intelligent balance of reinforcements and lighter sections where loads are minimal. This advanced method replaces traditional, unnecessarily heavy designs with sophisticated materials and vacuum infusion lamination. Reducing weight is key to improving fuel efficiency, making our yachts not only high-performance but also eco-friendly.

Construction Parameters:

• Type: GRP (Glass Reinforced Plastic) - All parts are manufactured using Vacuum Infusion Technology.
• Primary Materials:
  • Dipex/Saertex multiaxial fiberglass
  • Resins and gelcoats from Bufa, Ashland, Scott Bader, or better
  • Polyester or vinyl ester resin (for vacuum-infused parts upon request)

Hull Design:

• Core Structure: Features a laminate with foam core (Divinycell/Mycell 25mm-35mm H100/H130/H200), with the keel, bow, chine, and shaft housing made of solid laminate up to 19,800g per square meters.
• Infusion Process: The hull is laminated using vacuum infusion technology with vinyl ester resin and SoricTF for critical areas.
• Custom Solid Laminate Option: For those preferring fully solid laminate construction, this option is available.

Reinforcements:

• Stringers: Six full-length girders on the hull bottom and two additional stringers on each side, with solid laminate manufactured via infusion on structural foam.
• Bulkheads: Infusion composite with Divinycell/ Mycell CORE foam H80 (30mm-35mm) and multiaxial fiberglass up to 8,800g per square meters.
• Main Deck: Composite with Divinycell/ Mycell CORE foam H80 (20mm-25mm) and fiberglass up to 16,200g per square meters.

Connections and Finishing:

• Deck/Hull Connection: Bonded with structural adhesive (Crestomer 1152PA) and laminated with multiaxial fiberglass tapes.
• Superstructure and Hardtop: Sandwich infusion composite with Divinycell/ Mycell CORE foam H80/H200 (20mm-35mm).
• Engine Foundations: Made of solid laminate with metal washer plates for a secure foundation.

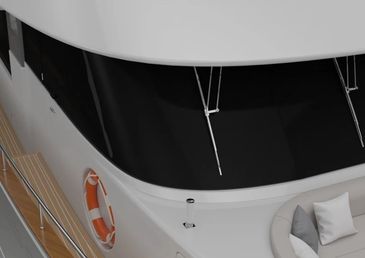

Windows:

• Superstructure Windows: Aesthetic windows use glass 6-8mm thick, while thicker windows (12-16mm) are available for LRC configurations. All windows meet CE A-Ocean certification standards, with optional Lexan storm covers.
• Hull Windows: Portholes are made from acrylic glass (10-12mm thick), while larger side windows range from 12-16mm. Steel storm covers can be added to smaller hull windows for added protection.

Finishing Laminate:

• Standard Finish: The hull and superstructure are coated with white gelcoat.
• Custom Options: Customers may opt for a polished finish with single-layer varnish or tri-coat pearl/metallic upon request.

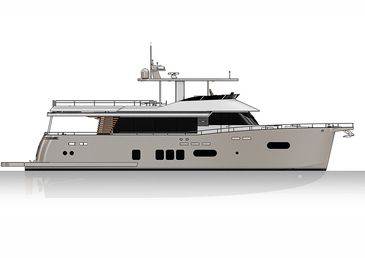

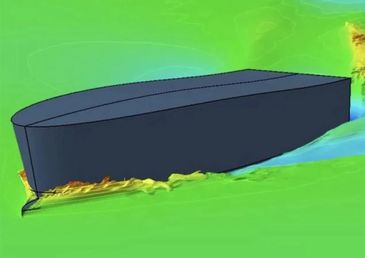

Our hulls are designed exclusively for us by renowned engineer Grzegorz Władziński, combining advanced features to meet the highest demands for performance, stability, and comfort.

Sharp Bow & Spacious Interior: The hull features a sharp bow at the waterline and a wide, squat design where interior space is needed, maximizing usability. The near-vertical bow creates additional room between the bow edge and collision bulkhead, providing more functional interior space.

High Bow for Reduced Spray: With a height of over 3m (10ft) above the waterline, the bow minimizes foredeck soaking, ensuring a dry and comfortable experience in rough conditions.

Efficient Speed Range: The hull is optimized for reduced resistance at cruising speeds of 7-10 knots, ensuring smooth and economical sailing.

Flattened Stern for Stability and Speed: The wide, flattened stern allows for increased speed when necessary, such as avoiding poor weather or reaching an anchorage before dark. It also reduces side-to-side swaying, offering a more stable ride.

Optimized Weight Distribution: All critical weights, including the engines, are positioned as low as possible to lower the center of gravity and enhance comfort by reducing rolling.

Optional Keel for Enhanced Stability: An optional keel can be added to improve buoyancy, lower the center of gravity, and strengthen the righting arm, significantly improving stability and protecting rudders and screws during shallow water navigation.

Innovative Bow Design: Our cutting bow pear, unlike a typical bulbous bow, slices through the water efficiently to minimize energy loss and reduce drag. This unique shape also improves comfort when navigating choppy waters.

Advanced Stabilization & Thruster Design: Optional active fins are available for added stabilization. Additionally, our bow thruster tunnels are CFD-tested to prevent undesirable vortices and resistance, ensuring maximum efficiency.

Underwater Exhaust & Deck Drainage: Like our thrusters, underwater exhaust exits are CFD-tested for optimal performance. Storm drains, equipped with reverse-blocking functionality, ensure effective deck drainage even in severe weather.

Each of these features is meticulously engineered and tested, guaranteeing an unmatched experience on the water, no matter the conditions.

Control and Automation Systems

The COR850 is equipped with a user-friendly hard-wired automation system. Operating the yacht’s systems is as simple as pressing a button, thanks to an intuitive control panel. This straightforward design allows most devices to be connected with standard contactors, making repairs easy and accessible anywhere.

For advanced system monitoring, we install the Hi-End Boening Automation System, a top-tier electronic system from Germany. This system oversees all onboard functions and displays them on its own screen or an MFD page, including tank levels. With the Boening system, there’s plenty of room for expansion based on customer preferences, and it includes an ignition with an immobilizer for added security.

Switchboards

Each yacht features two main switchboards:

Engine Room Switchboard: Manages inverters, chargers, and edge socket protections.

Pilot House Switchboard: Controls power source selection, redundant systems, bilge pumps, battery banks, and charging sources.

The system is designed with simple rotary switches for easy operation, ensuring quick and stress-free decision-making even in high-pressure situations.

Electrical Systems

All configurations of the COR850 use high-quality materials and solutions to ensure safety and long-lasting performance. There are two types of power systems available, depending on the needs of the user:

Level 1 – Coastal Setup:

• Power: One KOHLER 20kW generator
• Inverter: 6400W 24VDC / 230VAC inverter
• Battery Bank: 500Ah shared across all devices
• Shore Power: Single shore connection socket at the stern
• CYRIX: Starting aid for engines and generators

Level 2 – Long Range Cruiser (LRC) Configuration:

• Redundant Systems: Split port and starboard layout, with switchable redundancy
• Power Generators: Two generators (20kW and 18kW) capable of parallel synchronization, with the smaller generator running at night for quieter operation
• Inverters: Two 6400W 24VDC / 230VAC inverters
• Battery Banks: Two large 720Ah battery banks for added capacity
• Additional Alternators: Two 175A engine-mounted alternators
• Shore Power Protection: Two isolation transformers
• Customization: Battery types (AGM or LiFePO4), sockets, switches, and power architecture can be customized on request

Both power systems are designed for ease of use, with intuitive switchboards and independent battery banks to maintain radio and GPS functionality in case of a total power failure.

The COR850 also features six large earthing plates, strategically placed to ensure proper load discharge and safety.

The COR850 offers two levels of advanced navigation and communication systems to suit different needs. Both levels use high-quality Garmin equipment, with the option to upgrade to Furuno systems upon request.

Navigation Level 1

Multifunction Displays & Navigation:

• 2x 16" GPSMAP MFD in the Pilot House
• 2x 16" GPSMAP MFD on the Flybridge
• GPS Antenna 24XD
• Primary Autopilot Reactor 40
• Sensors Sail Pack 52 GNX (wind speed/direction, water temp, outside temp)
• Radar GMR Fantom 18

Communication:

• Primary VHF: VHF 215i in the Pilot House, plus full-function handset on the Flybridge

Navigation Level 2

Multifunction Displays & Navigation:

• 3x 22" GPSMAP MFD in the Pilot House
• 2x 16" GPSMAP MFD on the Flybridge
• GPS Antenna 24XD
• Primary Autopilot Reactor 40
• Sensors Sail Pack 52 GNX (wind speed/direction, water temp, outside temp)
• Radar GMR Fantom 18
• Radar GMR 1226 xHD2 (open array antenna)
• Camera IP GC 200 in the engine room and for stern view

Communication:

• LRC Transceiver Package based on ICOM include:
  • Primary & Secondary VHF: Icom M605EURO in the Pilot House and Flybridge
  • Third VHF Stations: Icom CommandMic HM-229B in the Engine Room, Crew Cabin, and Master Cabin
  • Radio Station HF/MF SSB: Icom M803 SSB (150W, 0.5-29.99Mhz)
  • AIS 800 Transceiver (Class B)
  • Satellite Compass MSC 10
  • inReach Mini Marine Bundle (Iridium satellite communicator)

Level 2 Antennas Package:

• VHF Antennas: Shakespeare 5230 Galaxy and 5309-R Galaxy VHF Marine Band
• HF/MF Antenna: Shakespeare 5310-R Galaxy SSB
• AIS Antenna: Shakespeare 5225-XT-AIS
• TV Antenna: Shakespeare 3019 SeaWatch® Marine TV Antenna
• AM/FM Antenna: Shakespeare 5235-XT Galaxy
• Cellular Antenna: Shakespeare 5239 Galaxy World Band
• Wi-Fi Antenna: Shakespeare 5248 Galaxy Wi-Fi Receiver All antennas are color-matched to the yacht’s superstructure.
• Additional Options (Available on Request):
• Second Autopilot System with Kobelt pump
• Thermal Camera for Level 1 systems
• Extended navigation features based on customer preferences

Additional Options (Available on Request):

• Second Autopilot System with Kobelt pump
• Thermal Camera for Level 1 systems
• Extended navigation features based on customer preferences

At Cormorant, we prioritize the owner's experience as the captain. Despite their size, our yachts are designed to be easily operated by you, with equipment tailored to minimize stress. However, should you prefer a crew, our yachts are fully equipped to accommodate that as well.

We've designed a full-blooded travel trawler that not only excels in functionality but also offers comfort and luxury. Whether you're sunbathing or fishing from the spacious swim platform, our yachts strike a perfect balance between elegance and performance. Unlike traditional designs that sacrifice aesthetics for practicality, our yachts maintain a sleek, modern look while catering to both seasoned travelers and those new to yachting.

Key Features

• Room for Everyone: Large water supply, spacious tanks, and powerful inverters ensure everyone has what they need, whether for a quick getaway or a long journey.
• Full-Size Kitchen: Each yacht comes with a full kitchen, complete with full-size appliances and ample storage space.
• Cabins & Bathrooms: Even the smallest model, the COR555, boasts five bathrooms. All cabins feature ensuite bathrooms for added comfort.
• Ample Storage: Huge fore peak and multiple lockers and compartments provide space for all your essentials.
• Crew & Guest Space: Additional crew quarters can be used for guests, with extra sleeping arrangements if desired.

Outdoor Living Zones

• Bow Lounge: Sofas, a table, and sunbathing mattresses for relaxation.
• Aft Deck: A cozy spot with a sofa, chairs, and a table—perfect for breakfast.
• Swim Platform: A spacious beach-like platform for swimming or sunbathing.
• Fly Deck: Open space for deckchairs, armchairs, or whatever you wish.
• Flybridge: A large U-shaped sofa, table, chairs, and a barbecue bar for entertaining.

Each zone can be shaded, making outdoor living as comfortable as possible in any weather.

Safety & Functionality

• Excellent Soundproofing: Enjoy peace and quiet with superior soundproofing for the drive and generators.
• Convenient Access: Service areas can be accessed without entering the main interior, via the swim platform or half-decks.
• High Safety Standards: Bulwarks over 1m (3.2ft) high, raised doors on the aft deck, and wide half-decks ensure safe movement around the yacht.
• Seasonal Use: Designed for all seasons, our yachts feature convertible flybridges, large integrated bathing platforms, and optional heating for extended use.

Elegant Finishes & Customization

Our yachts are known for their refined details, combining wood, stainless steel, and decorative varnish coatings. We work with industry leaders like Lechler Stoppani to provide the best finishes. Large windows, elegant or thicker depending on customer needs, meet strict CE-A ocean certification standards, ensuring both style and safety.

Cormorant yachts are designed to enhance your yachting experience, combining tradition with modern innovation, and offering a platform for adventure and relaxation alike.

Each yacht offers the flexibility to be configured with additional fuel tanks for extended voyages. Our standard fuel tanks are constructed from 4mm steel, laser-cut and TIG-welded for superior durability. Insulated with adhesive rubber, these tanks are designed to prevent air contact, extending their lifespan.

Key Features:

• Day & Storage Tanks: Every yacht comes equipped with 120L (32 US gal) day and storage tanks. Fuel is filtered from the storage tank to the day tank, with additional filters and optional centrifugal cleaning for continuous purification during operation.
• Sump System: Each tank includes a sump to collect water and impurities, ensuring fuel is drawn from above the sump. Wells are easy to empty, maintaining fuel cleanliness.
• Natural Level Gauges: For long voyages, tanks can be equipped with natural level gauges to provide accurate readings during extended cruising.

Composite Tank Option:

For those seeking optimized space usage, we offer composite fuel tanks, which are laminated into the yacht’s structure, enhancing both space efficiency and structural integrity.

Fuel Management System:

When additional tanks are installed, a Fuel Management System is integrated, allowing you to easily select and pump fuel via onboard automation. With just the press of a button, you can manage fuel distribution seamlessly.

• Fuel Distributors & Pumps: Each yacht is equipped with advanced fuel distributors and auxiliary pumps, allowing for easy switching and filtration without shutting down the engines.
• Premium Hoses: All fuel hoses are made from the highest quality materials with crimped ends for added safety and durability.

Additional Features:

• Fueling for Dinghy & Jet Skis: An optional fuel tank for dinghies or jet skis can be installed, with a refueling gun conveniently stored in the swim platform glove compartment.
• Refueling Points: Standard refueling is done from the starboard side, but additional refueling points on the port side can be added upon request.
• Tank Indicators: For extended systems, refueling caps include indicators that display fuel levels and tank selection.
• Spill Prevention: Fuel plugs are enclosed behind covers with drip trays to prevent spills during refueling.
• Ultrasonic Sensors: Every Cormorant has ultrasonic fuel sensors with tank compensation, ensuring accurate readings regardless of the yacht's position.
• Tilt Sensor: Optional tilt sensors automatically adjust fuel distribution between tanks in the event of crosswinds, maintaining balance during your voyage.

First and foremost, it should be noted that, regardless of the chosen configuration, all solutions and materials are of the highest quality, ensuring maximum safety and years of trouble-free operation.

Bilge Water

(Refer to the "Safety First" section for details.)

Plumbing Installations

• Materials: All installations use durable plastic pipes and stainless steel from Viega.
• Water Tanks: Fresh water tanks hold no less than 1300L (343 US gal), gray water tanks hold 300L (80 US gal), and black water tanks hold 500L (132 US gal). All tanks are HDPE from TEK-TANK (UK) with soundproofing insulation.
• Motorized Valves: Operated for gray and black water emptying, with manual valves for sideboard and bypass.
• Drinking Water: A 200L (53 US gal) drinking water tank with dedicated taps in the kitchen and wet bar. A small Aqua Pro desalinator (27L/h or 7 US gal/h) comes standard, with optional upgrades to larger systems.
• Hydrophore System: Double hydrophore system ensures consistent water pressure during high usage. A 300L (80 US gal) hot water tank is powered by engines and dual electric heaters (3kW/1.5kW) with a circulation pump for immediate hot water.
• Custom Options: A 60L (16 US gal) hot water tank for the Master cabin or additional water system ports can be installed upon request.

Wastewater Management

• Gray Water: Drainage chambers for easy cleaning; kitchen sinks equipped with waste grinders.
• Tecma Toilets: Fitted with 230V high-capacity macerators and dual-function control panels for freshwater flushing. Tanks are emptied either at port or at sea (where permissible), and rinsing valves are installed for easy cleaning.
• Redundant Pump System: Efficient pumps manage black and gray water, with manual valve switching for fluid circuits. An additional hand pump is available for Long-Range Cruiser (LRC) configurations.

Windshield & Deck Washing

• Windshield Washing: Equipped with a large freshwater tank below deck, featuring an anti-pollution valve, non-return valve, and detergent dispenser.
• Deck & Anchor Washing: Optional fresh water or pressurized saltwater washing systems, with quick-disconnect hose points installed at six strategic locations.

Air Conditioning & Heating

• Cooling/Heating System: Based on chilled and heated water, designed for maximum acoustic comfort. The system is optimized for night operation with minimal compressor use, and an extensive heating system is available for LRC configurations.
• Customizable: Choose between moderate or tropical climate systems, with optional external zone heating and cooling. A Webasto diesel stove (15kW) can be added for additional cabin and hot water heating.

Ventilation & Air Quality

• Independent Cabin Ventilation: Each cabin has a dedicated supply and exhaust fans, and a smoke detection system can be installed upon request. The salon, kitchen, and Pilothouse have enhanced ventilation systems.
• Air Purification: An ionizer reduces bacteria, viruses, and dust, while dual aromatizers keep the air fresh with pleasant fragrances.
• Optional Central Vacuum: A central vacuum system can be installed for additional convenience.

We prioritize simplicity and performance by opting for a dual-engine system over a single large engine. This configuration allows for optimal efficiency and versatility, with all transmissions using a proven, angular output integrated with the engine. The design minimizes parts, ensuring easy access for maintenance, and can be serviced by mechanics worldwide.

To further reduce vibrations from the propeller and engine, we offer a thrust transfer system that isolates vibrations using highly flexible vibro-shock absorbers, enhancing onboard comfort.

Engines and Transmissions

We offer a range of engine options, including the trusted Scania Marine V8 and six-cylinder engines, known for their balance, torque, and global service network. For expedition yachts, we recommend John Deere PowerTech engines, renowned for their durability and worldwide parts availability. These engines are particularly useful for those planning extended voyages in remote areas.

• Cooling System: Our engines are available with a charge air cooler using water from the engine cycle, preventing clogging and ensuring reliable performance in harsh conditions.
• Transmission: All configurations use ZF transmissions, equipped with trolling valves for smooth maneuvering in ports. Optional PTO outputs for driving hydraulic pumps are available.
• Suspension: Depending on thrust bearing load, we use double vibration isolators or softer suspensions with flexible mounts that allow for easy replacement and adjustment.

Control Systems

• ZF Smart Command: Our basic system integrates all controls, providing precise power management with a feedback sensor for shaft speed. A joystick maneuvering system is available for easy docking and position-hold functionality.
• Remote Control: Optional docking remote controls and thruster integrations provide added convenience.

Electrical & Control Installation

• Wiring: Engine and transmission wiring is routed above the engine and ceiling for optimal safety. Starter batteries are placed in separate spaces for protection.
• Cooling Water Intakes: Dual intakes are installed for each engine, with pressure sensors to detect blockages. The Boening system will alert you to any issues and prevent engine start if valves are closed.
• Exhaust Systems: We use underwater exhaust systems with a bypass for low-speed operation. Power generator exhausts are fitted with gas separators for quiet, efficient performance.

Engine Room Ventilation & Cooling

• Ventilation: Designed to strict ISO standards, the system maintains engine room temperatures with separate fans for port and starboard, ensuring continuous operation even in case of failure.
• Inverter Cooling: Independent cooling systems keep inverters at optimal temperatures for peak performance.
• Optional A/C: Air conditioning for the engine room is available for added comfort during maintenance.

Fire Protection & Servicing

• Fire Safety: The engine room is equipped with a Sea-Fire system with automatic and manual release options, using non-marking agents.

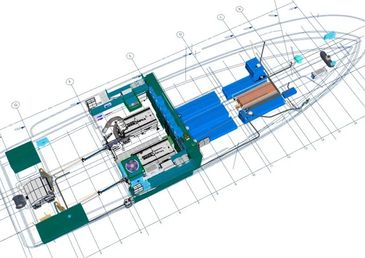

• Easy Maintenance: Each yacht features a well-organized, ergonomic engine room with full-size doors and optional acoustic and thermal covers for engines. An integrated oil change system allows for easy servicing, with LRC configurations including tanks for multiple oil changes, ensuring extended operation during long voyages.

Steering & Thrusters

• Steering System: We use commercial-grade components from Kobelt, including hydraulic steering pumps and double hydraulic cylinders for redundancy. An autopilot system is standard, with a second parallel autopilot available for LRC configurations.
• Thrusters: Each Cormorant includes an electric bow thruster, with optional stern thrusters and proportional control. For LRC configurations, thrusters with increased tractive force and hydraulic pumps are available.
